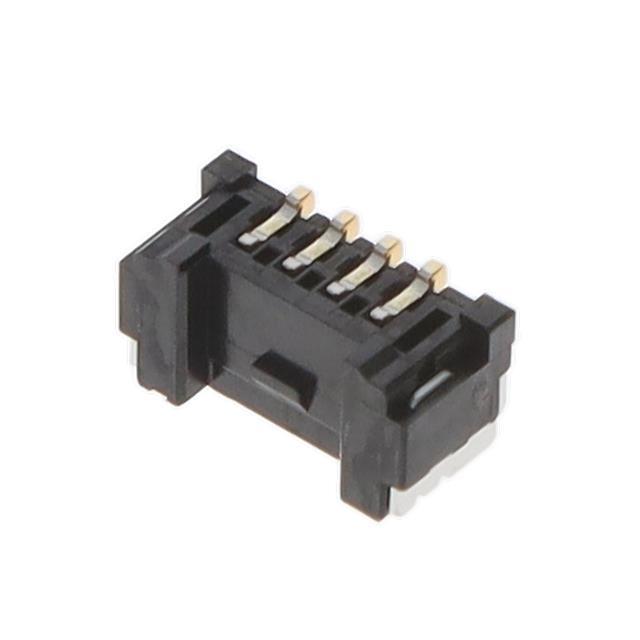

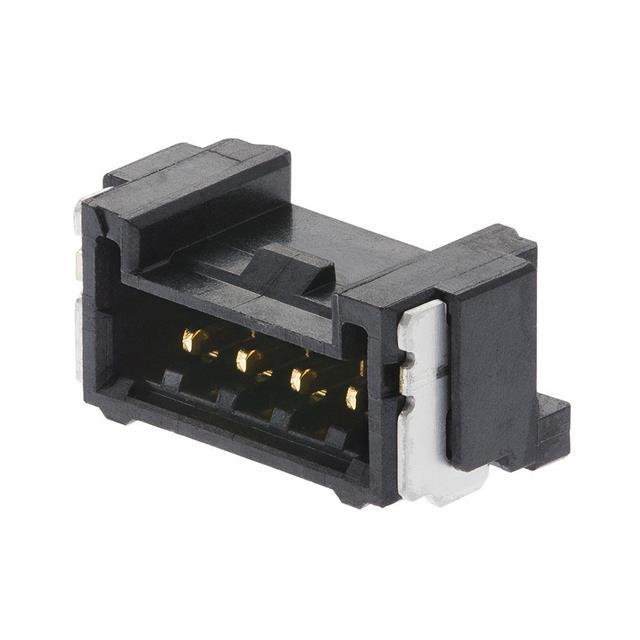

5055670471
| Manufacturer： | Molex | |
| Description： | CONN HEADER SMD R/A 4POS 1.25MM | |
| ANGFU #： | 11767959-5055670471 | |
| RoHS Status： | 1 | |
| ECAD Model： | ||
Datasheet | Add to favorites | Free Sample |
Let’s communicate
Thank you for visiting our website. If you have any questions, please contact us and we will be happy to assist you. You can contact us via email, Skype, or by filling out the form below.
You can contact us via email, Skype, or by filling out the form below.
Request a quote
Shipping Rates - Estimate
ANGFU ships to hundreds of countries worldwide. Use the dropdown to select a designation country to view rates in US dollars.
Orders shipped to certain countries could qualify for free shipping depending on order amount and/or package size and weight.
SELECT COUNTRY TO SHIP TO:
Select Country
Shipping Rates for Australia
| Shipping Method | Cost(1kg) | Incoterms | Estimated |
|---|---|---|---|
No data | |||
Notice: Cost price is 1kg, If your package is of excessive weight or size, our sales will contact you prior to shipping and notify you of shipping costs.
| TYPE | DESCRIPTION | Select Attribute |
|---|---|---|
| Category | Headers, Male Pins | |
| Manufacture | Molex | |
| Micro-Lock PLUS 505567 | Series | |
| 4 | Number of Positions | |
| Surface Mount, Right Angle | Mounting Type | |
| -40°C ~ 105°C | Operating Temperature | |
| Solder | Termination | |
| Header | Connector Type | |
| Pick and Place, Solder Retention | Features | |
| Board to Cable/Wire | Style | |
| Locking Ramp | Fastening Type | |
| 1 | Number of Rows | |
| Varies by Wire Gauge | Current Rating (Amps) | |
| Male Pin | Contact Type | |
| Brass | Contact Material | |
| All | Number of Positions Loaded | |
| UL94 V-0 | Material Flammability Rating | |
| Black | Insulation Color | |
| 0.049" (1.25mm) | Pitch - Mating | |
| Tin | Contact Finish - Mating | |
| 39.4µin (1.00µm) | Contact Finish Thickness - Mating | |
| Tin | Contact Finish - Post | |
| Square | Contact Shape | |
| 0.154" (3.90mm) | Insulation Height | |
| Shrouded - 4 Wall | Shrouding | |
| Polyamide (PA), Nylon, Glass Filled | Insulation Material | |
| 50VAC/DC | Voltage Rating |
Products found: undefined
Datasheet
5055670471, From Manufacturer: Molex, CONN HEADER SMD R/A 4POS 1.25MM, part of IntegratedConnectors, Interconnects, Rectangular Connectors, Headers, Male Pins,
