TYPE	DESCRIPTION	Select Attribute
Category	AC DC Converters
Manufacture	MEAN WELL
PT-65 (65W)	Series
Open Frame	Type
5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm)	Size / Dimension
Chassis Mount	Mounting Type
-10°C ~ 60°C (With Derating)	Operating Temperature
CB, CE, cURus, TUV	Approval Agency
90 ~ 264 VAC, 127 ~ 370 VDC	Voltage - Input
Adjustable Output, Universal Input	Features
3	Number of Outputs
77%	Efficiency
65W	Power (Watts)
ITE (Commercial)	Applications
3 kV	Voltage - Isolation
5V	Voltage - Output 1
15V	Voltage - Output 2
-15V	Voltage - Output 3
5.5 A	Current - Output 1
2 A	Current - Output 2
500 mA	Current - Output 3

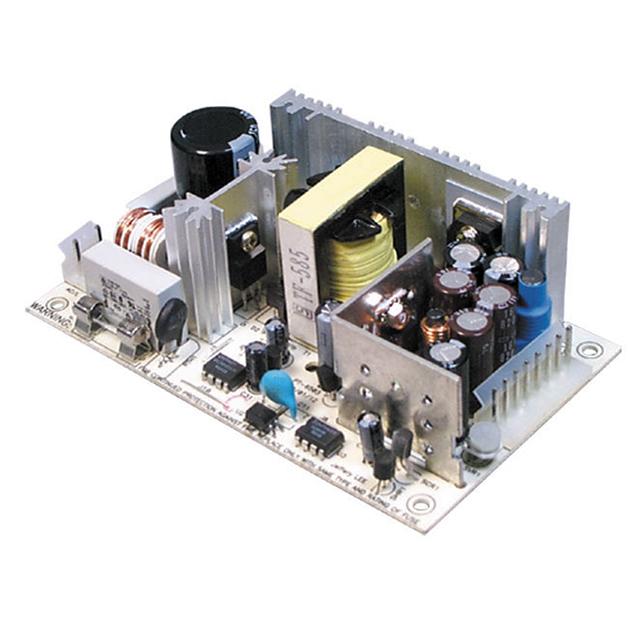

PT-65C, From Manufacturer: MEAN WELL, AC/DC CONVERTER 5V +/-15V 65W, part of IntegratedPower Supplies - External/Internal (Off-Board), AC DC Converters,
