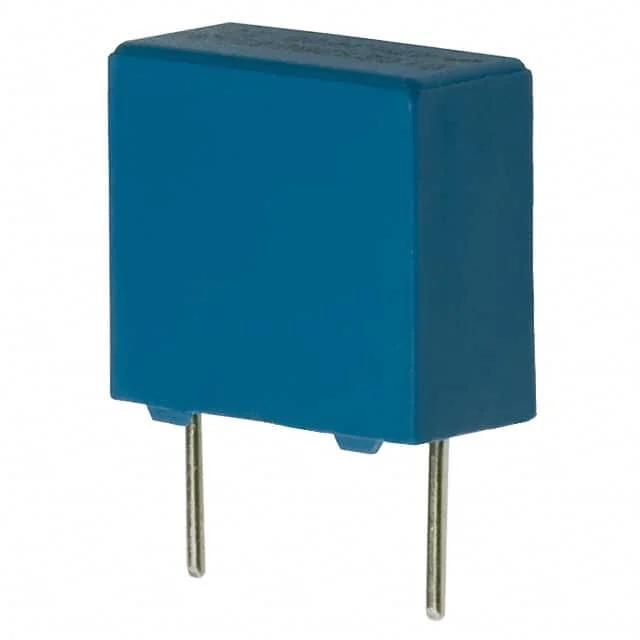

B32912A3104K289
| Manufacturer： | EPCOS (TDK) | |
| Description： | CAP FILM 0.1UF 10% 760VDC RADIAL | |
| ANGFU #： | 4853336-B32912A3104K289 | |
Datasheet | Add to favorites | Free Sample |
Let’s communicate
Thank you for visiting our website. If you have any questions, please contact us and we will be happy to assist you. You can contact us via email, Skype, or by filling out the form below.
You can contact us via email, Skype, or by filling out the form below.
Request a quote
Shipping Rates - Estimate
ANGFU ships to hundreds of countries worldwide. Use the dropdown to select a designation country to view rates in US dollars.
Orders shipped to certain countries could qualify for free shipping depending on order amount and/or package size and weight.
SELECT COUNTRY TO SHIP TO:
| Shipping Method | Cost(1kg) | Incoterms | Estimated |
|---|---|---|---|
No data | |||
Notice: Cost price is 1kg, If your package is of excessive weight or size, our sales will contact you prior to shipping and notify you of shipping costs.
| TYPE | DESCRIPTION | Select Attribute |
|---|---|---|
| Category | Film Capacitors | |
| Manufacture | EPCOS (TDK) | |
| B3291*A/B3 - X1 Standard | Series | |
| 0.709" L x 0.276" W (18.00mm x 7.00mm) | Size / Dimension | |
| Through Hole | Mounting Type | |
| -40°C ~ 110°C | Operating Temperature | |
| PC Pins | Termination | |
| 0.492" (12.50mm) | Height - Seated (Max) | |
| X1 | Ratings | |
| Radial | Package / Case | |
| 330V | Voltage Rating - AC | |
| 760V | Voltage Rating - DC | |
| ±10% | Tolerance | |
| EMI, RFI Suppression | Applications | |
| 0.591" (15.00mm) | Lead Spacing | |
| 0.1 µF | Capacitance | |
| Polypropylene (PP), Metallized | Dielectric Material |
Datasheet
B32912A3104K289, From Manufacturer: EPCOS (TDK), CAP FILM 0.1UF 10% 760VDC RADIAL, part of IntegratedCapacitors, Film Capacitors,
