TYPE	DESCRIPTION	Select Attribute

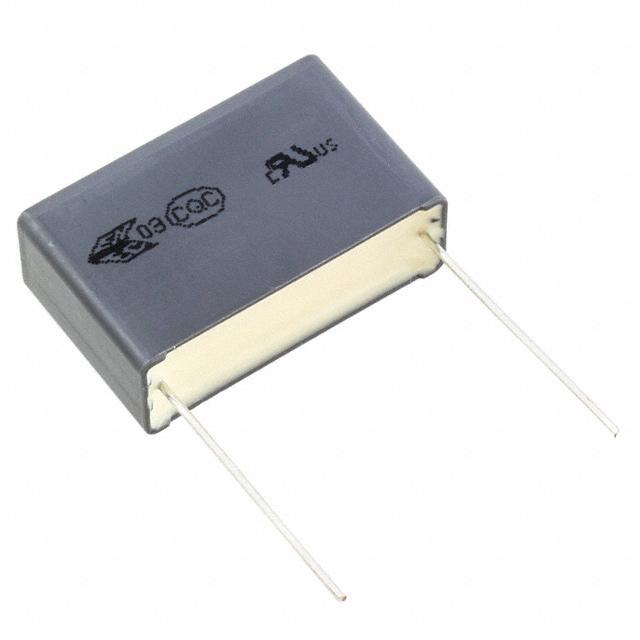

Category	Film Capacitors
Manufacture	EPCOS (TDK)
B3292*H/J - X2 High Humidity	Series
1.654" L x 1.299" W (42.00mm x 33.00mm)	Size / Dimension
Through Hole	Mounting Type
-40°C ~ 110°C	Operating Temperature
PC Pins	Termination
1.890" (48.00mm)	Height - Seated (Max)
AEC-Q200, X2	Ratings
85C/85% Humidity	Features
Radial	Package / Case
305V	Voltage Rating - AC
630V	Voltage Rating - DC
±20%	Tolerance
Automotive; EMI, RFI Suppression	Applications
1.476" (37.50mm)	Lead Spacing
15 µF	Capacitance
Polypropylene (PP), Metallized	Dielectric Material
