TFM-105-01-L-D-A
TFM-105-01-L-D-A

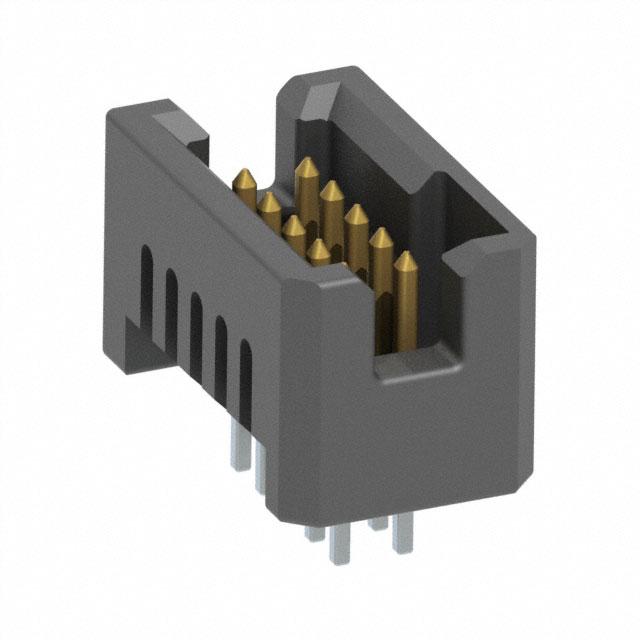

Images are for reference only See Product Specifications

TFM-105-01-L-D-A

Manufacturer：Samtec
Description：CONN HEADER VERT 10POS 1.27MM
ANGFU #：13062736-TFM-105-01-L-D-A
RoHS Status：

1

ECAD Model：

PCB Symbol, Footprint & 3D Model

Datasheet

Add to favorites

Free Sample

AS 9120B
ISO 9001
ESD
ISO 13485
ISO 22301
ISO 28000
ISO 37001
ISO 37301
ISO 45001
ERAI
ISO 14001

Let’s communicate

Thank you for visiting our website. If you have any questions, please contact us and we will be happy to assist you. You can contact us via email, Skype, or by filling out the form below.

You can contact us via email, Skype, or by filling out the form below.

Request a quote

Part Number
Manufacturer
Quantity
$ Target Price
Email
Remark
TYPEDESCRIPTION

Select Attribute

CategoryHeaders, Male Pins
ManufactureSamtec
Tiger Eye™ TFMSeries
10Number of Positions
Through HoleMounting Type
-55°C ~ 125°COperating Temperature
SolderTermination
HeaderConnector Type
Board GuideFeatures
Board to Board or CableStyle
Push-PullFastening Type
2Number of Rows
2.9A per ContactCurrent Rating (Amps)
Male PinContact Type
Phosphor BronzeContact Material
AllNumber of Positions Loaded
UL94 V-0Material Flammability Rating
BlackInsulation Color
0.050" (1.27mm)Pitch - Mating
GoldContact Finish - Mating
15.0µin (0.38µm)Contact Finish Thickness - Mating
TinContact Finish - Post
SquareContact Shape
0.220" (5.60mm)Insulation Height
Shrouded - 4 WallShrouding
Liquid Crystal Polymer (LCP)Insulation Material
0.131" (3.33mm)Contact Length - Mating
0.050" (1.27mm)Row Spacing - Mating
0.078" (1.98mm)Contact Length - Post
275VACVoltage Rating

TFM-105-01-L-D-A, From Manufacturer: Samtec, CONN HEADER VERT 10POS 1.27MM, part of IntegratedConnectors, Interconnects, Lugs, Headers, Male Pins,

FAQs

Availability not shown, Contact us
REQUEST A QUOTE

Ships From:
HK

QTYUnit PriceEXT PRICE
10+$4.531545.3150
20+$4.279785.5940
34+$3.7762128.3908
48+$3.5245169.1760
65+$3.2727212.7255

This price does not include VAT and shipping costs.
