DF11-20DP-2DSA(01)
DF11-20DP-2DSA(01)
Images are for reference only See Product Specifications

DF11-20DP-2DSA(01)

Manufacturer：Hirose Electric

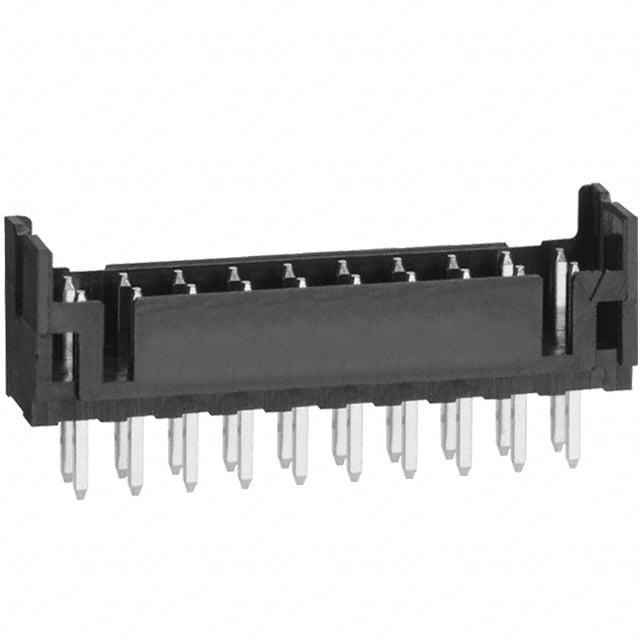

Description：CONN HEADER VERT 20POS 2MM
ANGFU #：13939524-DF11-20DP-2DSA(01)

Datasheet

Add to favorites

Free Sample

Let’s communicate

Thank you for visiting our website. If you have any questions, please contact us and we will be happy to assist you. You can contact us via email, Skype, or by filling out the form below.

You can contact us via email, Skype, or by filling out the form below.

Request a quote

Part Number
Manufacturer
Quantity
$ Target Price
Email
Remark
TYPEDESCRIPTION

Select Attribute

CategoryHeaders, Male Pins
ManufactureHirose Electric
DF11Series
20Number of Positions
Through HoleMounting Type
-30°C ~ 85°COperating Temperature
SolderTermination
HeaderConnector Type
Board to Board or CableStyle
Detent LockFastening Type
2Number of Rows
2ACurrent Rating (Amps)
Male PinContact Type
BrassContact Material
AllNumber of Positions Loaded
UL94 V-0Material Flammability Rating
BlackInsulation Color
0.079" (2.00mm)Pitch - Mating
GoldContact Finish - Mating
8.00µin (0.203µm)Contact Finish Thickness - Mating
SquareContact Shape
0.260" (6.60mm)Insulation Height
Shrouded - 4 WallShrouding
Polyamide (PA), NylonInsulation Material
0.118" (3.00mm)Contact Length - Mating
0.079" (2.00mm)Row Spacing - Mating
0.118" (3.00mm)Contact Length - Post
0.299" (7.60mm)Overall Contact Length
250VVoltage Rating

DF11-20DP-2DSA(01), From Manufacturer: Hirose Electric, CONN HEADER VERT 20POS 2MM, part of IntegratedConnectors, Interconnects, Lugs, Headers, Male Pins,
