B4B-XH-AM
B4B-XH-AM

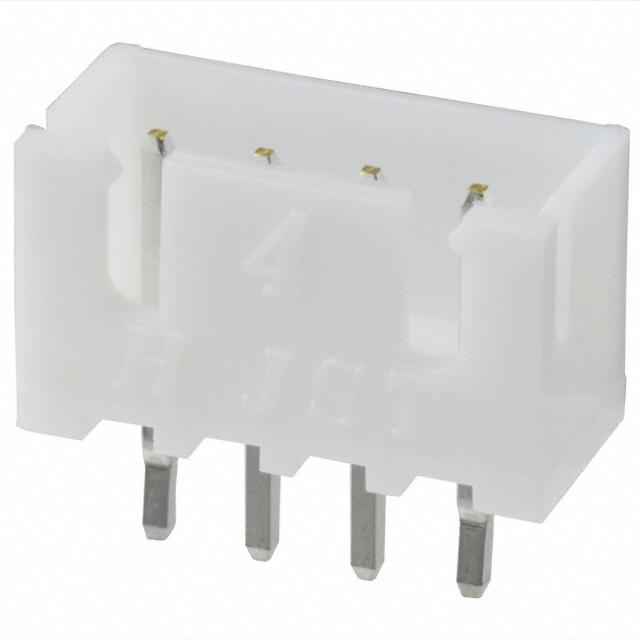

Images are for reference only See Product Specifications

B4B-XH-AM

Manufacturer：JST
Description：CONN HEADER VERT 4POS 2.5MM
ANGFU #：13954135-B4B-XH-AM
RoHS Status：

0

ECAD Model：

PCB Symbol, Footprint & 3D Model

Datasheet

Add to favorites

Free Sample

AS 9120B
ISO 9001
ESD
ISO 13485
ISO 22301
ISO 28000
ISO 37001
ISO 37301
ISO 45001
ERAI
ISO 14001

Let’s communicate

Thank you for visiting our website. If you have any questions, please contact us and we will be happy to assist you. You can contact us via email, Skype, or by filling out the form below.

You can contact us via email, Skype, or by filling out the form below.

Request a quote

Part Number
Manufacturer
Quantity
$ Target Price
Email
Remark
TYPEDESCRIPTION

Select Attribute

CategoryHeaders, Male Pins
ManufactureJST
XHSeries
4Number of Positions
Through HoleMounting Type
-25°C ~ 85°COperating Temperature
Press-Fit, SolderTermination
HeaderConnector Type
Board GuideFeatures
Board to Cable/WireStyle
Detent LockFastening Type
1Number of Rows
3ACurrent Rating (Amps)
Male PinContact Type
BrassContact Material
AllNumber of Positions Loaded
UL94 V-0Material Flammability Rating
NaturalInsulation Color
0.098" (2.50mm)Pitch - Mating
TinContact Finish - Mating
TinContact Finish - Post
SquareContact Shape
0.276" (7.00mm)Insulation Height
Shrouded - 4 WallShrouding
Polyamide (PA66), Nylon 6/6Insulation Material
0.134" (3.40mm)Contact Length - Post
250VVoltage Rating

B4B-XH-AM, From Manufacturer: JST, CONN HEADER VERT 4POS 2.5MM, part of IntegratedConnectors, Interconnects, Lugs, Headers, Male Pins,

FAQs

Availability not shown, Contact us
REQUEST A QUOTE

Ships From:
HK

QTYUnit PriceEXT PRICE
477+$0.088142.0237
1009+$0.083283.9488
1715+$0.0734125.8810
2449+$0.0685167.7565
3297+$0.0636209.6892

This price does not include VAT and shipping costs.
