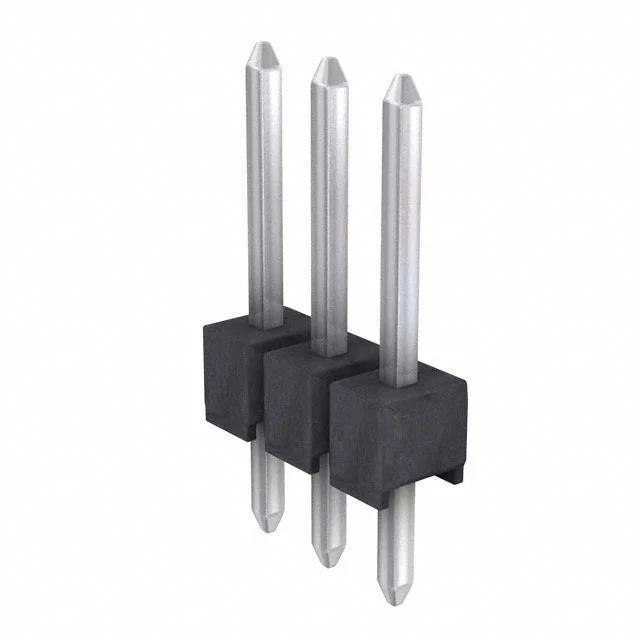

M20-9990345
| Manufacturer： | Harwin | |
| Description： | CONN HEADER VERT 3POS 2.54MM | |
| ANGFU #： | 13939203-M20-9990345 | |
| RoHS Status： | 0 | |
| ECAD Model： | ||
Datasheet | Add to favorites | Free Sample |
Let’s communicate
Thank you for visiting our website. If you have any questions, please contact us and we will be happy to assist you. You can contact us via email, Skype, or by filling out the form below.
You can contact us via email, Skype, or by filling out the form below.
Request a quote
Shipping Rates - Estimate
ANGFU ships to hundreds of countries worldwide. Use the dropdown to select a designation country to view rates in US dollars.
Orders shipped to certain countries could qualify for free shipping depending on order amount and/or package size and weight.
SELECT COUNTRY TO SHIP TO:
Select Country
Shipping Rates for Australia
| Shipping Method | Cost(1kg) | Incoterms | Estimated |
|---|---|---|---|
No data | |||
Notice: Cost price is 1kg, If your package is of excessive weight or size, our sales will contact you prior to shipping and notify you of shipping costs.
| TYPE | DESCRIPTION | Select Attribute |
|---|---|---|
| Category | Headers, Male Pins | |
| Manufacture | Harwin | |
| M20 | Series | |
| 3 | Number of Positions | |
| Through Hole | Mounting Type | |
| -40°C ~ 105°C | Operating Temperature | |
| Solder | Termination | |
| Header, Cuttable | Connector Type | |
| Board to Board or Cable | Style | |
| Push-Pull | Fastening Type | |
| 1 | Number of Rows | |
| 3A per Contact | Current Rating (Amps) | |
| Male Pin | Contact Type | |
| Brass | Contact Material | |
| All | Number of Positions Loaded | |
| UL94 V-0 | Material Flammability Rating | |
| Black | Insulation Color | |
| 0.100" (2.54mm) | Pitch - Mating | |
| Gold | Contact Finish - Mating | |
| Square | Contact Shape | |
| 0.100" (2.54mm) | Insulation Height | |
| Unshrouded | Shrouding | |
| Polyamide (PA6T), Nylon 6T | Insulation Material | |
| 0.240" (6.10mm) | Contact Length - Mating | |
| 0.118" (3.00mm) | Contact Length - Post | |
| 0.460" (11.68mm) | Overall Contact Length |
Products found: undefined
Datasheet
M20-9990345, From Manufacturer: Harwin, CONN HEADER VERT 3POS 2.54MM, part of IntegratedConnectors, Interconnects, Lugs, Headers, Male Pins,
