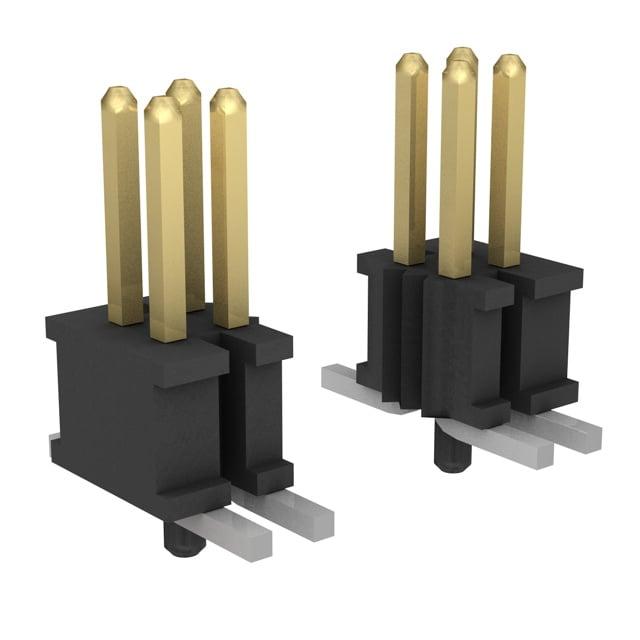

FTSH-125-01-F-DV-EJ

Let’s communicate

Thank you for visiting our website. If you have any questions, please contact us and we will be happy to assist you. You can contact us via email, Skype, or by filling out the form below.

You can contact us via email, Skype, or by filling out the form below.

Skype Live Chat
Wechat

Request a quote

Shipping Rates - Estimate

ANGFU ships to hundreds of countries worldwide. Use the dropdown to select a designation country to view rates in US dollars.

Orders shipped to certain countries could qualify for free shipping depending on order amount and/or package size and weight.

SELECT COUNTRY TO SHIP TO:

Select Country

Shipping Rates for Australia

Shipping Method	Cost(1kg)	Incoterms	Estimated
No data

Notice: Cost price is 1kg, If your package is of excessive weight or size, our sales will contact you prior to shipping and notify you of shipping costs.

TYPE	DESCRIPTION	Select Attribute
Category	Headers, Male Pins
Manufacture	Samtec
FTSH	Series
50	Number of Positions
Surface Mount	Mounting Type
-55°C ~ 125°C	Operating Temperature
Solder	Termination
Header, Cuttable	Connector Type
End Shrouds	Features
Board to Board or Cable	Style
Latch Lock/Eject Hooks	Fastening Type
2	Number of Rows
3.4A per Contact	Current Rating (Amps)
Male Pin	Contact Type
Phosphor Bronze	Contact Material
All	Number of Positions Loaded
UL94 V-0	Material Flammability Rating
Black	Insulation Color
0.050" (1.27mm)	Pitch - Mating
Gold	Contact Finish - Mating
3.00µin (0.076µm)	Contact Finish Thickness - Mating
Tin	Contact Finish - Post
Square	Contact Shape
0.099" (2.51mm)	Insulation Height
Shrouded	Shrouding
Liquid Crystal Polymer (LCP)	Insulation Material
0.120" (3.05mm)	Contact Length - Mating
0.050" (1.27mm)	Row Spacing - Mating
