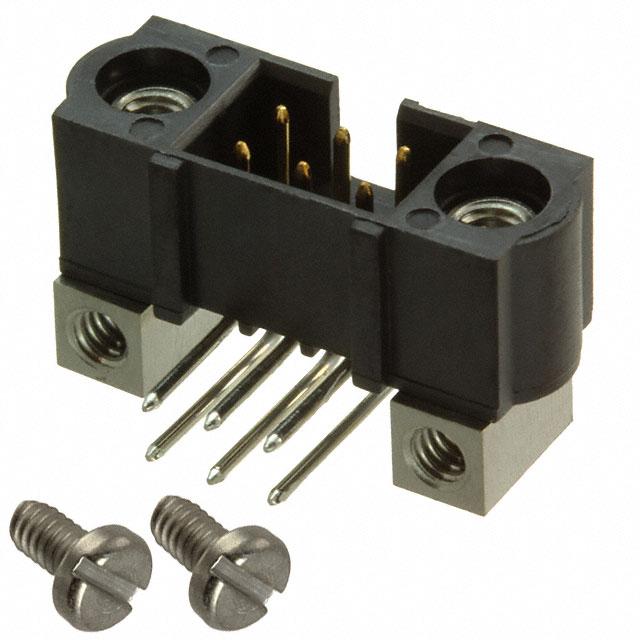

M80-5400642
| Manufacturer： | Harwin | |
| Description： | CONN HEADER R/A 6POS 2MM | |
| ANGFU #： | 13926511-M80-5400642 | |
Datasheet | Add to favorites | Free Sample |
Let’s communicate
Thank you for visiting our website. If you have any questions, please contact us and we will be happy to assist you. You can contact us via email, Skype, or by filling out the form below.
You can contact us via email, Skype, or by filling out the form below.
Request a quote
Shipping Rates - Estimate
ANGFU ships to hundreds of countries worldwide. Use the dropdown to select a designation country to view rates in US dollars.
Orders shipped to certain countries could qualify for free shipping depending on order amount and/or package size and weight.
SELECT COUNTRY TO SHIP TO:
Select Country
Shipping Rates for Australia
| Shipping Method | Cost(1kg) | Incoterms | Estimated |
|---|---|---|---|
No data | |||
Notice: Cost price is 1kg, If your package is of excessive weight or size, our sales will contact you prior to shipping and notify you of shipping costs.
| TYPE | DESCRIPTION | Select Attribute |
|---|---|---|
| Category | Headers, Male Pins | |
| Manufacture | Harwin | |
| Datamate J-Tek | Series | |
| 6 | Number of Positions | |
| Through Hole, Right Angle | Mounting Type | |
| -55°C ~ 125°C | Operating Temperature | |
| Solder | Termination | |
| Header | Connector Type | |
| Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware | Features | |
| Board to Board or Cable | Style | |
| Threaded | Fastening Type | |
| 2 | Number of Rows | |
| 2.2A | Current Rating (Amps) | |
| Male Pin | Contact Type | |
| Phosphor Bronze | Contact Material | |
| All | Number of Positions Loaded | |
| UL94 V-0 | Material Flammability Rating | |
| Black | Insulation Color | |
| 0.079" (2.00mm) | Pitch - Mating | |
| Gold | Contact Finish - Mating | |
| 29.5µin (0.75µm) | Contact Finish Thickness - Mating | |
| Tin | Contact Finish - Post | |
| Circular | Contact Shape | |
| 0.218" (5.55mm) | Insulation Height | |
| Shrouded - 4 Wall | Shrouding | |
| Polyphenylene Sulfide (PPS), Glass Filled | Insulation Material | |
| 0.079" (2.00mm) | Row Spacing - Mating | |
| 0.118" (3.00mm) | Contact Length - Post | |
| 800V | Voltage Rating |
Products found: undefined
Datasheet
M80-5400642, From Manufacturer: Harwin, CONN HEADER R/A 6POS 2MM, part of IntegratedConnectors, Interconnects, Lugs, Headers, Male Pins,
