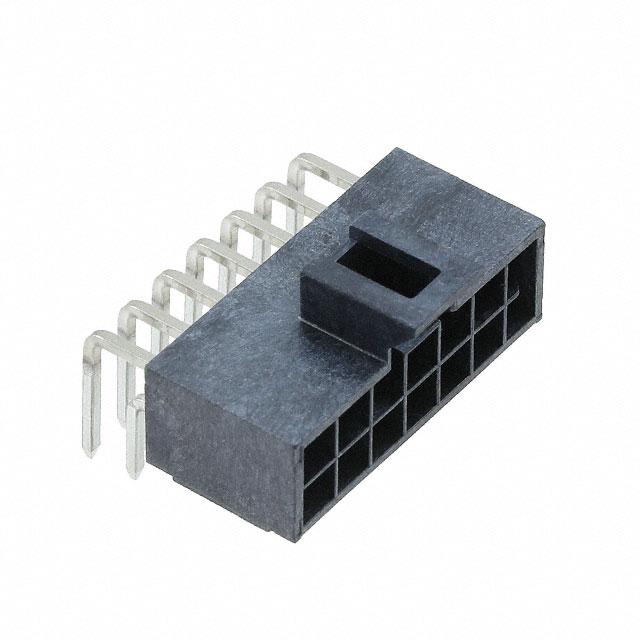

Images are for reference only See Product Specifications

1053141216

Manufacturer：Molex
Description：Nano-Fit Right-Angle Header, Thr
ANGFU #：11789276-1053141216

Add to favorites

Free Sample

Let’s communicate

Thank you for visiting our website. If you have any questions, please contact us and we will be happy to assist you. You can contact us via email, Skype, or by filling out the form below.

You can contact us via email, Skype, or by filling out the form below.

Request a quote

Part Number
Manufacturer
Quantity
$ Target Price
Email
Remark
TYPEDESCRIPTION

Select Attribute

CategoryHeaders, Male Pins
ManufactureMolex
Nano-Fit 105314Series
16Number of Positions
Through Hole, Right AngleMounting Type
-40°C ~ 105°COperating Temperature
SolderTermination
HeaderConnector Type
Board GuideFeatures
Board to Cable/WireStyle
Latch HolderFastening Type
2Number of Rows
Male PinContact Type
BrassContact Material
AllNumber of Positions Loaded
0.098" (2.50mm)Pitch - Mating
GoldContact Finish - Mating
15.0µin (0.38µm)Contact Finish Thickness - Mating
TinContact Finish - Post
SquareContact Shape
0.247" (6.28mm)Insulation Height
Shrouded - 4 WallShrouding
Liquid Crystal Polymer (LCP)Insulation Material
0.098" (2.50mm)Row Spacing - Mating
0.138" (3.50mm)Contact Length - Post

1053141216, From Manufacturer: Molex, Nano-Fit Right-Angle Header, Thr, part of IntegratedConnectors, Interconnects, Lugs, Headers, Male Pins,
